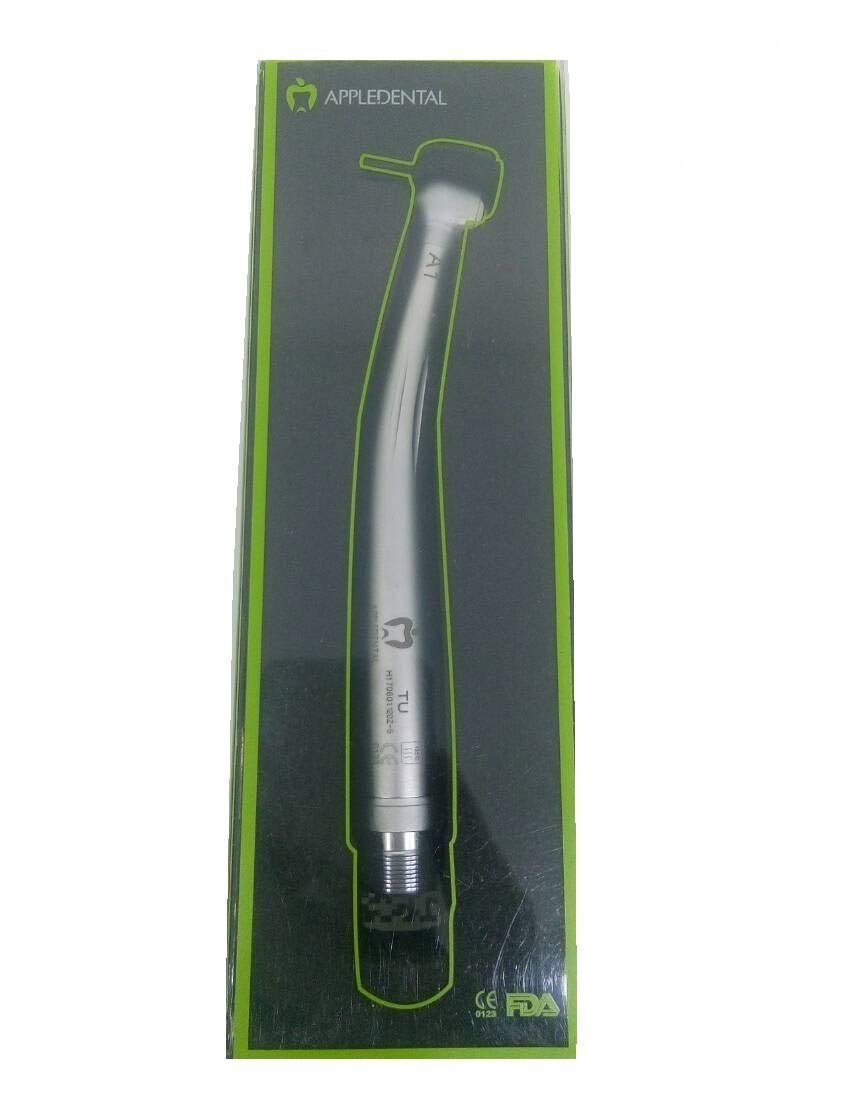

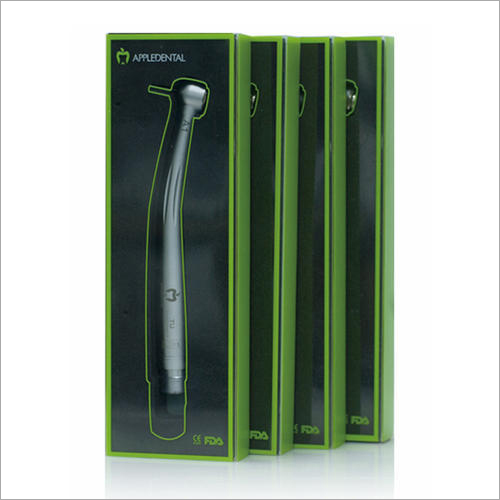

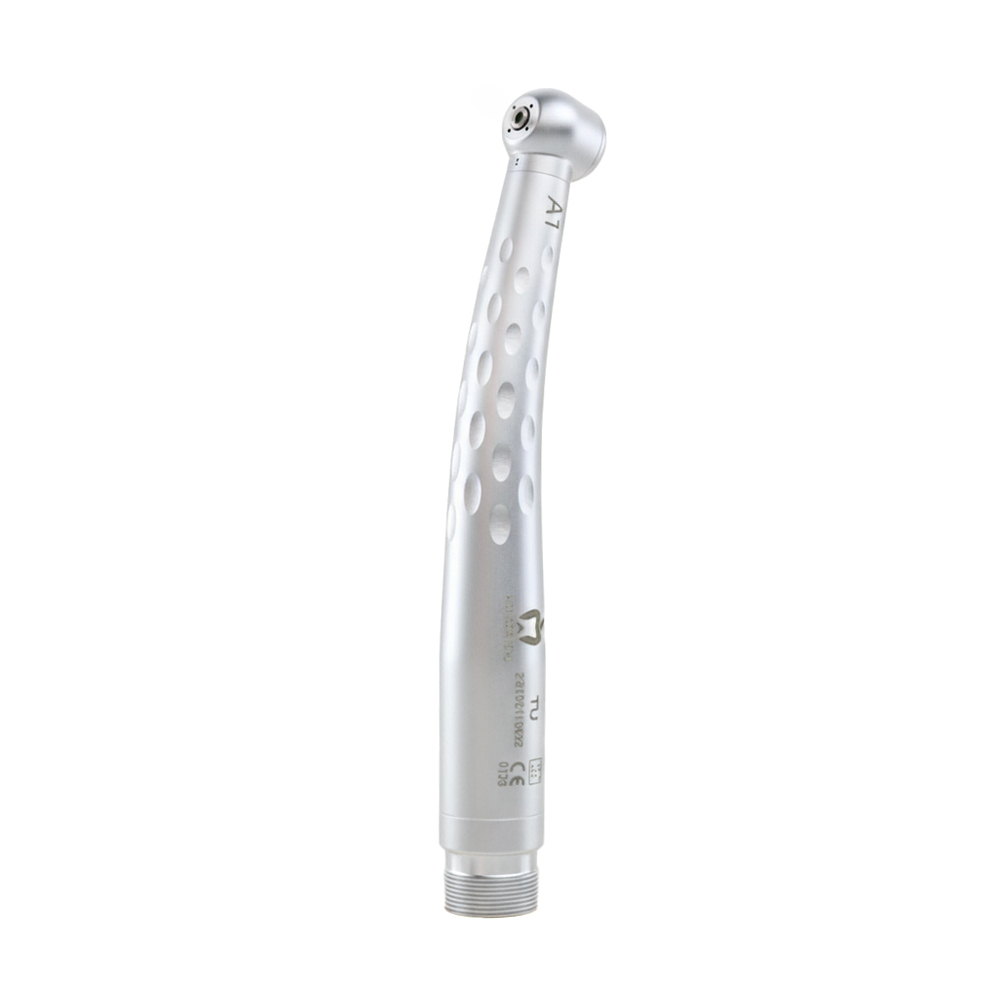

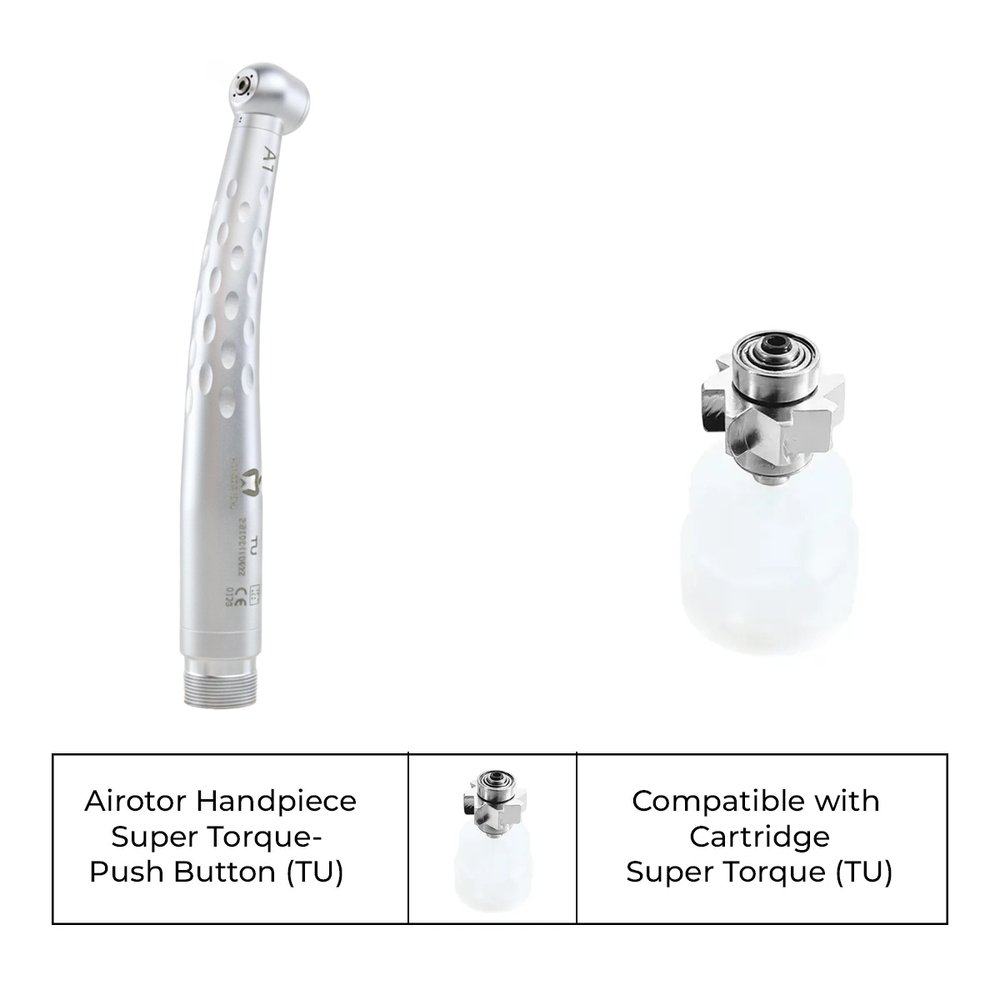

The Appledental A1 Pro Super Torque Push Button (TU) Airotor Handpiece is designed for high-performance dental procedures. It features a robust construction that ensures durability and reliability during use. This handpiece is ideal for various applications, including restorative and surgical procedures, making it a versatile tool in any dental practice. Its ergonomic design provides comfort for the practitioner while enhancing precision in treatment.

Specification

This handpiece operates at a speed of up to 400,000 RPM and is made from high-quality stainless steel for optimal performance. It is compatible with standard dental connections and is designed for easy sterilization. The handpiece meets international compliance standards for dental equipment and is available in a single unit pack.

Technical Specifications

• Head Type: Super Torque (Large Head)
• Chucking Mechanism: Push Button
• Rotational Speed: 350,000 to 400,000 RPM
• Air Pressure Requirement: 0.18 MPa – 0.21 MPa
• Bearing Technology: German Ceramic Ball Bearings
• Cooling Design: Single Water Spray System
• Backflow Protection: Integrated Anti-Retraction Exhaust System
• Connection Profile: Standard 2-Hole / Borden Fitting
• Body Material: Slip-Resistant Copper Alloy Coating
• Sterilization Profile: Autoclavable up to 135°C (275°F)

Usage

The Airotor Hand Piece is used in dental clinics for cutting, shaping, and polishing teeth during various procedures. It is recommended to handle the device with care and store it in a clean, dry environment to maintain its functionality. Regular maintenance and sterilization are essential to ensure optimal performance and hygiene.

This high-speed pneumatic device is used by dental surgeons to cut hard dental tissues efficiently. Its primary applications include:

• Enamel & Dentin Removal: Excating decayed tooth structures during cavity preparation.
• Prosthodontic Preparation: Crown and bridge preparation by trimming tooth structures.
• Old Restoration Removal: Cutting through amalgam, composite, or old crowns to replace them.
• Surgical Sectioning: Splitting multi-rooted teeth or crowns during extractions to lower surgical trauma.

Clinical Procedure Protocols (Guide)

To ensure patient safety and maximize instrument longevity, follow these clinical steps:

1. Pre-Operative Bur Inspection: Insert a compatible 1.59 mm–1.60 mm Friction Grip (FG) bur. Press the rear push button firmly, insert the bur fully, and release. Tug the bur to verify it is locked safely before activation.
2. Cooling Calibration: Ensure the dental chair's water control is open. The single water spray must hit the cutting tip of the bur directly to avoid thermal damage to the dental pulp.
3. Cutting Technique: Use light, intermittent brush-like strokes. Do not apply heavy lateral pressure, as the high-torque head cuts through tissue with minimal force. Excessive pressure stalls the turbine and wears out the ceramic bearings early.
4. Post-Operative Decontamination: Remove the bur immediately after use. Clean the external body under running water, apply a dedicated spray lubricant through the air intake drive line, and autoclave the handpiece at 135°C before using it on the next patient.
